Course Duration : 6 Classes |

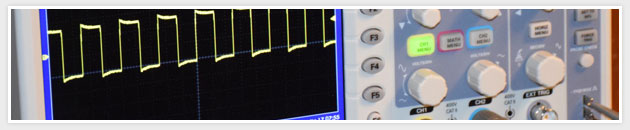

AVJ Launches new course related with advance electronics based on Oscilloscope ……….
Our affordable oscilloscope tutorial will show you the fundamental principles common to all oscilloscopes so you can familiarize yourself with any oscilloscope in a matter of minutes. It includes instructor support, online exams and a certificate of completion suitable for framing once you are finished with this oscilloscope tutorial.
You’ll also receive complete lesson and tuition credit if you ever decide to transfer over to one of AVJ Institute.
Anyone who works in the field of electronics will encounter many types of oscilloscopes. By having some knowledge of the internal structure of the oscilloscope, you can devise new ways of using the instruments with which you are already familiar. If you plan on working in the electronics field, you must learn how to use an oscilloscope.
You need not have access to an oscilloscope to learn from this oscilloscope tutorial but you may want to try some of the procedures and techniques described in the topics on an actual oscilloscope if one is available to you.
Oscilloscope Tutorial Lessons:
Understanding and Using the Oscilloscope:
Master the basics and move on to more advanced topics
Basic Operation:
The Electron Beam, How to Observe Several Cycles of the Signal Waveform
Horizontal Sweep and Synchronization:
Horizontal Sweep Controls, External Sync.
Waveform Amplification:
The Vertical Amplifier, Oscilloscope Probes, Intensity (or Z-Axis) Modulation
Voltage Measurements:
AC and DC Voltage Measurements, Signal Tracing and Troubleshooting, How to Measure Current
Time, Frequency and Phase Measurements:
Measuring Time Intervals, Direct and Lissajous Freq. Measurements
Oscilloscope Limitations and Specifications
What to expect from using an oscilloscope
Laboratory and Industrial Oscilloscopes:
Dual-trace Scopes, High-Frequency Scopes, Delayed-Sweep Scopes, Vector Scopes, Storage Scopes, Spectrum Analyzers, Curve Tracers
|
|
|
